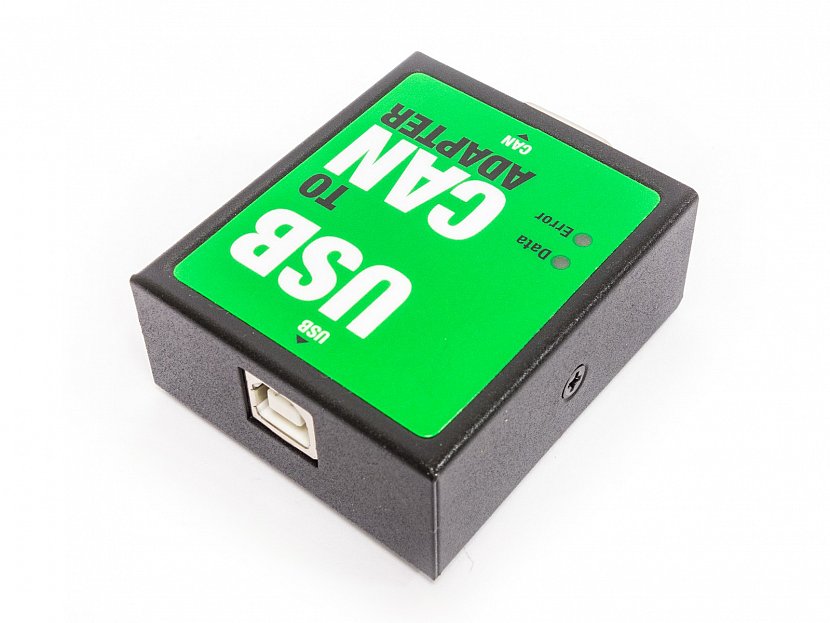

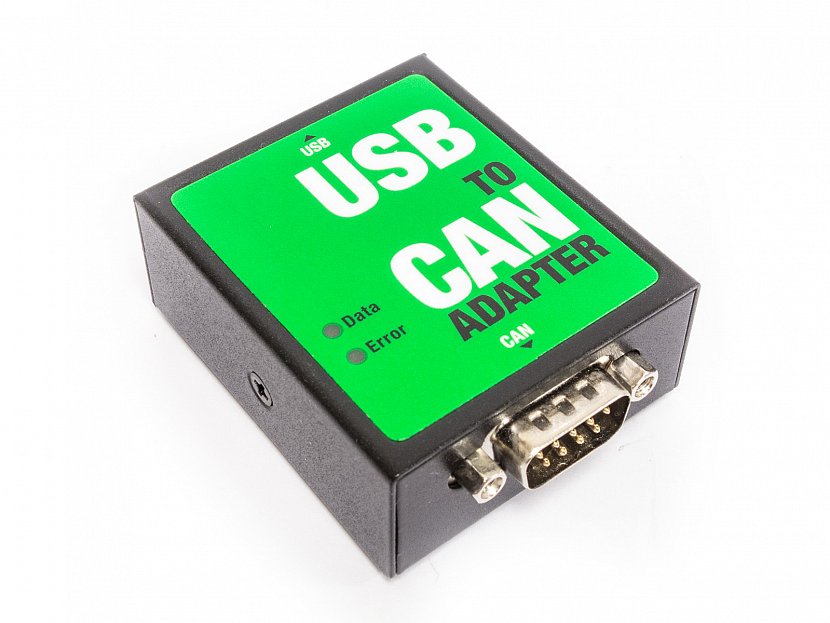

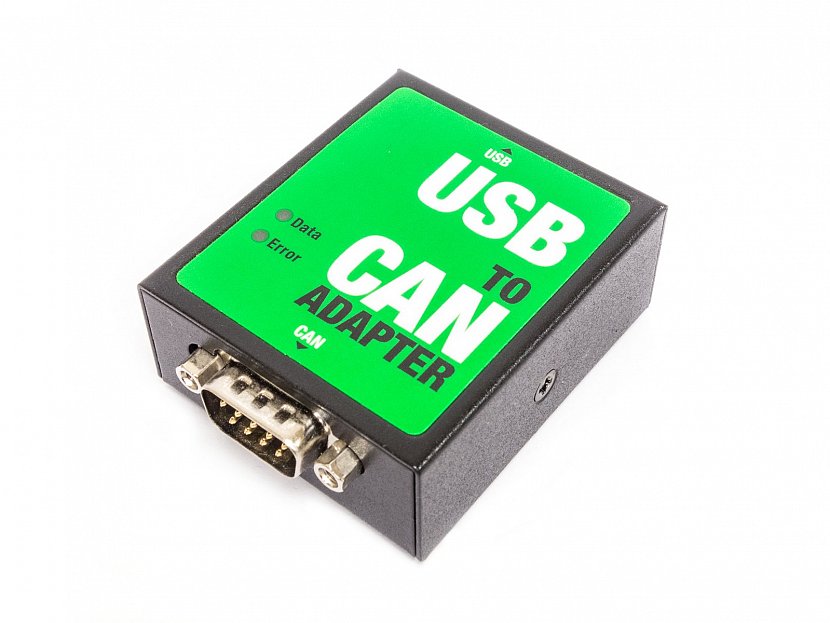

USB-CAN-M 1-port USB to CAN Bus adapter with metal case
Features:
- Adds a CAN Bus port on your computer by connecting to a USB 1.1, 2.0 or 3.0 port
- SECC metal chassis
- Powered by USB port, no external power adapter required
- LEDs indicate initialization and CAN Bus status
- Installs as a standard Windows COM port
- Supported CAN modes: standard, listen, echo
- Can be controlled over serial port using ASCII commands
- Easy to use API provided along with sample source codes and GUI sample programs
- Easy plug and play installation and CAN-Bus device connection
- CAN Bus spped up to 1Mbps
- 512 bytes transmit/receive FIFO buffer for high speed data throughput
- Supports CAN 2.0A and CAN 2.0B protocols
- Designed by ARM Cortex-M0 32-bit microcontroller and the USB to UART chip
- Drivers provided for Windows and Linux OS
- Supports SocketCAN (slcan driver) from kernel 2.6.38+
Specifications:
| General | |||||||
| USB Bus | Supports USB 1.0, 2.0 and 3.0 | ||||||
| CAN Bus | Supports CAN 2.0A and CAN 2.0B | ||||||
| Chipset | ARM Cortex-M0 32-bit controller | ||||||
| Plug & Play | Supported | ||||||
| IRQ & I/O Address | Assigned by system | ||||||
| CAN Bus | |||||||
| CAN Bus Controller | Bosch C_CAN module | ||||||
| Number of Ports | 1 | ||||||
| Connector | DB9 male | ||||||
| CAN Bus Speed | 5kbps up to 1Mbps for transmit & receive | ||||||
| Signals | CAN_H, CAN_L, CAN_GND, CAN_V+ | ||||||
| CAN Bus Mode | Standard mode: normal operation on CAN bus Listen mode: passive receiving of CAN frames Echo mode: transmitter also receives sent frames (for testing purpose) | ||||||
| LED | CAN bus data activity, CAN bus error | ||||||
| Protection | +/- 16kV ESD protection for all signals | ||||||
| Software Features | |||||||
| API Library | Supported OS: Windows, Linux Supports C/C++, C#, VB.NET, VB6, Python and LabVIEW | ||||||
| Utility | On-board firmware update utility | ||||||
| OS Driver Support | Windows XP to 10 Windows Server 2003 to Server 2016 Linux 2.6+ | ||||||
| Linux OS | Supports SocketCAN (slcan driver) from kernel 2.6.38+ | ||||||
| Monitoring Tools | Supported by CANHacker, Titan CAN Test | ||||||
| Power | |||||||
| Power Input | Power supplied via USB (5V) connector No external power needed | ||||||
| Power Comsumption | Max. 150mA@5VDC | ||||||
| Mechanical | |||||||
| Casing | SECC metal chassis | ||||||
| Dimensions | 61mm x 50mm x 23mm (L x W x H) | ||||||
| Weight | 100g | ||||||
| Environmental | |||||||
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | ||||||
| Storage Temperature | -20°C to 75°C (-4°F to 167°F) | ||||||
| Operating Humidity | 5% to 95% RH | ||||||
| Safety Approvals | CE, FCC | ||||||
| |||||||
